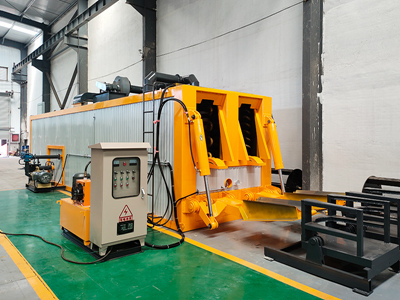

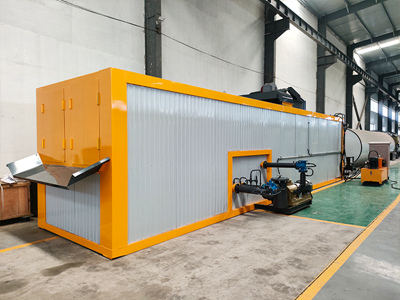

SLBD08 Bitumen Decanter:

SLBD08 bitumen decanter mainly consists of the de-bucketing box, the platform for putting the bucket, the integrated device for turning the bucket into the bucket, the heating system of heat-conducting oil and the electrical control system. The internal part is divided into two sets of asphalt de-bucket heating and asphalt heating.

Working Principle:

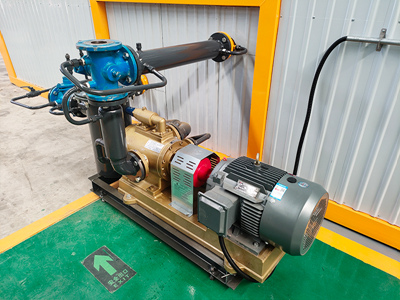

The heating part of the asphalt drum is located in the asphalt drum chamber and is surrounded by heating coils. The heating coils are surrounded by heating coils. The heating coils and the asphalt drums mainly exchange heat in the form of radiation. The asphalt is softened by the heat and flows into the asphalt heating chamber, thus achieving the purpose of asphalt de-bucketing. The asphalt heating system mainly relies on the heat-conducting oil to exchange heat with the asphalt through the steel pipe, which continues to heat the asphalt coming out of the drum. So that the temperature reaches the pump suction temperature (110°C).

All SELEAD Bitumen Decanter parameters:

Type	SLBD06-Burner Direct Heating	SLBD08–Thermal Oil Boiler Heating
Productivity（t/h）	6T/H	8T/H
Qty of Barrels Accommodated	36	40
Capacity of Melting Pool（m³）	17m³	20m³
Qty of Rails	2 rails	2 rails
Heating method	Burner heating	Thermal oil boiler heating
Bitumen output flow	16m³/H	16m³/H
Total power	25kw	20.5kw
Overall Dimension (L*W*H)	10000mm*2250mm*2450mm	11500mm*2250mm*2450mm

SLBD08 Bitumen Decanter Feature:

1、Containerized design, easy to transport and install, reliable structure, suitable for use in different sites

Simple operation and precise temperature control;

2、The operation is stable, the main components are international famous brands, and the service life is long;

3、Using high-quality rock wool and automatic expansion and sealing design, the insulation effect is good.

4、A variety of heating methods can be selected,with high heating efficiency, rapid bitumen melting, saving energy consumption and use costs;
