SLTS0610 Synchronous Chip Sealer：

SLTS0610 Synchronous Chip Sealer is an upgraded model based on our existing developed rubberized asphalt fiber Synchronous Chip Sealer truck. Combined with the construction needs of city streets, mountainous areas and narrow terrain of rural roads, it is another new road construction and maintenance masterpiece developed and developed.

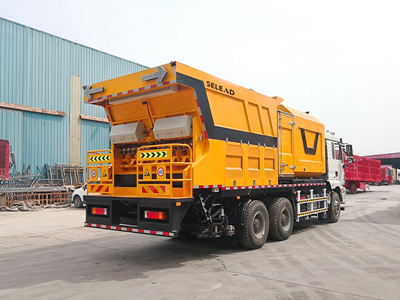

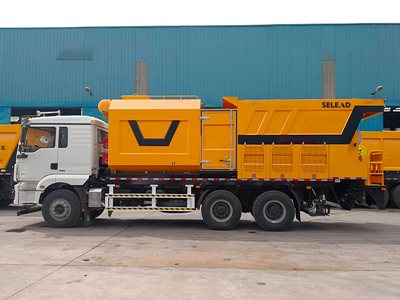

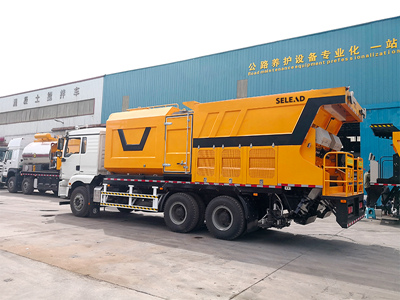

SLTS0610 Chip Sealer Truck：

SLTS0610 can be used for sprinkling modified bitumen, rubber bitumen, matrix hot bitumen, high viscosity emulsified bitumen and stone chip spreading synchronous construction. Make bitumen bonding materials, stone chips between the faster time full surface contact, to achieve greater adhesion of special construction equipment. Can be used for highway bridge deck waterproofing, under seal stress absorption layer, road surface maintenance of gravel seal process.

SELEAD All Synchronous Chip Sealer:


Model	SLTS0505	SLTS0610	SLTS0812	SLTS0814 (Fiber type)
Chassis	FAW 4*2	HOWO/SHACMAN 6*4	HOWO/SHACMAN 8*4	HOWO/SHACMAN 8*4
Aggregate bin volume	5m3	10-12m3	12-14m3	12-14m3
Bitumen tank volume	5m3	6m3	8m3	8m3
Aggregate diameter	3-25mm	3-25mm	3-25mm	3-25mm
Paving width	200-3800mm	200-3800mm	200-3800mm	200-4000mm
Amount of bitumen spread	0.2-3kg/m2	0.2-3kg/m2	0.2-3kg/m2	0.2-3kg/m2
Amount of aggregate spread	2-22L/m2	2-22L/m2	2-22L/m2	2-22L/m2
Bitumen heating rate	≥20℃/h	≥20℃/h	≥20℃/h	≥20℃/h
Best construction speed	3-6km/h	3-6km/h	3-6km/h	3-6km/h
Fiber cut length	—	—	—	30(mm)、60(mm)、120(mm)
Fiber spreading amount	—	—	—	30～90(g/m2)
Dimensions	8160*2550*3550(mm)	10220×2550×3850(mm)	11950×2500×3950(mm)	12000*2550*4000mm

SLTS0610 Synchronous Chip Sealer Features：

1、The chassis is made of HOWO special chassis, which can also be customized. Strong load capacity and low fuel consumption. Stable and light operation.
2、The outer wall of asphalt tank is packed with stainless steel frosted plate, which is anti-corrosion and durable. Tank insulation effect is good, temperature drop ≤ 12 ℃ / 8h (under normal temperature conditions).
3、The tank is equipped with 1 imported diesel burner, with high combustion efficiency. With stirring blades to make it fast heating speed, automatic ignition and automatic temperature control system, safe and stable operation.
4、The silo is designed for the internal hopper gravity drop structure. No need to lift construction safety. The operation is more focused and effortless when the construction work surface is limited in height.
5、The power of the hydraulic system adopts the way of the main car engine with full power to take power. The use of high temperature resistant pneumatic clutch, stable operation.
6、Ability to achieve zero start spraying.

7、The bitumen pump adopts China Shanggui brand. The pump has good self-priming performance, large speed range, good sealing performance and smooth flow.
8、The bitumen sprinkling adopts high precision nozzle. Make each nozzle spraying consistent, the spraying effect is fully guaranteed.
9、Stone spreading and asphalt spreading are controlled by multiple sets of cylinders to control the spreading width respectively, and each cylinder can be controlled and adjusted independently.
10、The bitumen tank is equipped with mixing device, which can make the rubber asphalt stored in the tank.

Easy to Operate

SLTS0610 Synchronous Chip Sealer operating system is equipped with two sets of manual and automatic systems to ensure that the equipment can be in working condition at any time. Adopt vehicle-mounted special controller to realize automatic control, through the sensor to accurately measure the speed of the vehicle and pump speed, so as to precisely control the spreading amount during the construction process. The cab is equipped with construction implementation monitoring device and automatic operation panel.
