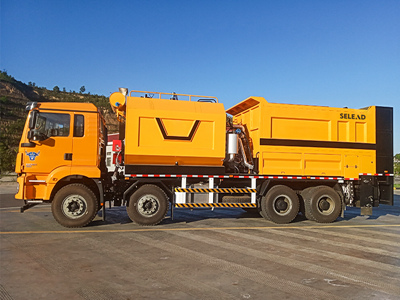

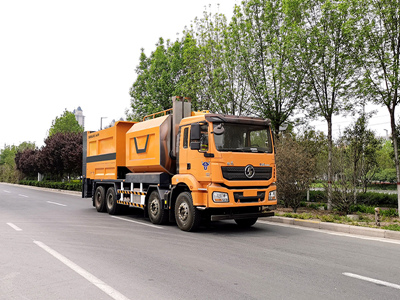

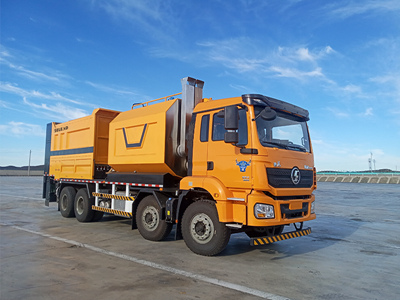

SLTS0812 synchronous chip sealer is to synchronize bitumen sprinkling and aggregate spreading. Make the bitumen, stone chips between the faster time full surface contact, to achieve a greater degree of bonding special construction equipment. Used in highway surface, bridge deck waterproofing, gravel sealing process in under seal layer.
| |  |  |  |  |
| Model | SLTS0505 | SLTS0610 | SLTS0812 | SLTS0814 (Fiber type) |
| Chassis | FAW 4*2 | HOWO/SHACMAN 6*4 | HOWO/SHACMAN 8*4 | HOWO/SHACMAN 8*4 |
| Aggregate bin volume | 5m3 | 10-12m3 | 12-14m3 | 12-14m3 |
| Bitumen tank volume | 5m3 | 6m3 | 8m3 | 8m3 |
| Aggregate diameter | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
| Paving width | 200-3800mm | 200-3800mm | 200-3800mm | 200-4000mm |
| Amount of bitumen spread | 0.2-3kg/m2 | 0.2-3kg/m2 | 0.2-3kg/m2 | 0.2-3kg/m2 |
| Amount of aggregate spread | 2-22L/m2 | 2-22L/m2 | 2-22L/m2 | 2-22L/m2 |
| Bitumen heating rate | ≥20℃/h | ≥20℃/h | ≥20℃/h | ≥20℃/h |
| Best construction speed | 3-6km/h | 3-6km/h | 3-6km/h | 3-6km/h |
| Fiber cut length | — | — | — | 30(mm)、60(mm)、120(mm) |
| Fiber spreading amount | — | — | — | 30～90(g/m2) |
| Dimensions | 8160*2550*3550(mm) | 10220×2550×3850(mm) | 11950×2500×3950(mm) | 12000*2550*4000mm |
1. Main vehicle chassis
The main vehicle adopts Howo/Shacman mountain special dump chassis, with strong load capacity and especially adapted to the plateau construction work.
2.Bitument spreading system
Adopt Riello burner heating, high heating efficiency, short standby time. Adopt Belgium Johnson bitumen pump, high temperature and high pressure resistance, stable and reliable performance.
3. Aggregate spreading system
The stone chip spreading system is made up of lifting and double spiral fabricator, with more uniform aggregate spreading.
4. Auxiliary power system
Equipped with independent Cummins auxiliary engine and imported hydraulic system for higher and more stable construction accuracy.
5. Accurate control
Equipped with dual control of cab automatic control and rear manual operation and HD camera. The nozzle can be controlled separately to adjust the spreading width, and the vehicle can be sprayed when it starts. Bitumen and aggregate can either be spread at the same time or used separately.
