SELEAD Slurry Seal Truck Introduction:

Micro surfacing paver/ slurry seal truck is a new intelligent product independently developed by SELEAD, combining years of road construction and equipment development experience.

Functions and Applications:

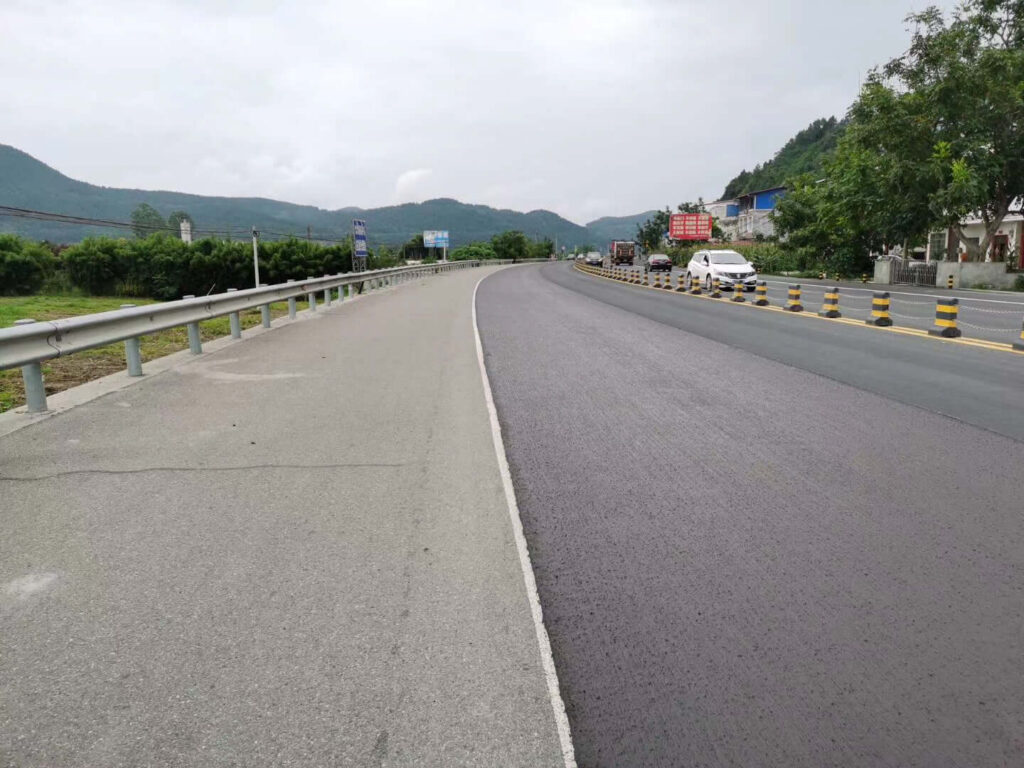

It can not only be applied to the construction technology of thin-layer slurry seal and micro-surface layer, but also realize cold mixing and cold spreading of ultra-thick paving. It provides excellent equipment and technical guarantee for the milling and re-paving of road surface. At the same time, it can also realize the functions of automatic material proportion following viscous oil spraying, fiber cutting addition and bitumen heating.

Main Technical Parameters:


ModelSLXF0612SLXF1035SLXF1240SLXF1640 (Fiber type)SLXF1950 (Thick Pave)
ChassisHOWO 4*2HOWO 6*4HOWO/SHACMAN 8*4HOWO/SHACMAN 8*4HOWO/SHACMAN 8*4
Auxiliary Engine power70kw/2200rpm73kw/2400rpm75kw/2200rpm110 kw/2300rpm153kw/2300rpm
Aggregate bin volume6m310m312m313-16m319-22m3
Emulsion tank volume1.2m33.5 m34m34m35m3
Water tank volume1.2m33.5 m34m34m35m3
Additive tank volume400L400L400L400L
Stuffing Box Volume1×0.5 m32×0.5 m32×0.5 m32×0.5 m3 2×1 m3
Mixer outputMaximum 2.5T/minMaximum 3.5T/minMaximum 3.5T/minMaximum 3.5T/minMaximum4.5T/min
Minimum speedAround 1.5 km/hAround 1.5 km/hAround 1.0 km/hAround 1.0 km/hAround 1.0 km/h
Paving thickness3 ~ 15 mm3 ~ 15 mm3 ~ 15 mm3 ~ 15 mm3 ~ 70mm
Paving width1.6~2.5 m adjustable2.5~4.3 m adjustable2.5~4.3 m adjustable2.5~4.3 m adjustable2.5~4.3 m adjustable
Fiber cut length0.1%~0.25%0.1%~0.25%
Recommended fiber content12mm、24mm12mm、24mm
Dimensions7650*2300*3080mm10500*2500*3500mm11670*2520*3570mm12000*2550*3570mm12000*2550*3570mm

Features and Advantages of SELEAD Slurry Seal Truck:

1. Innovative solutions:

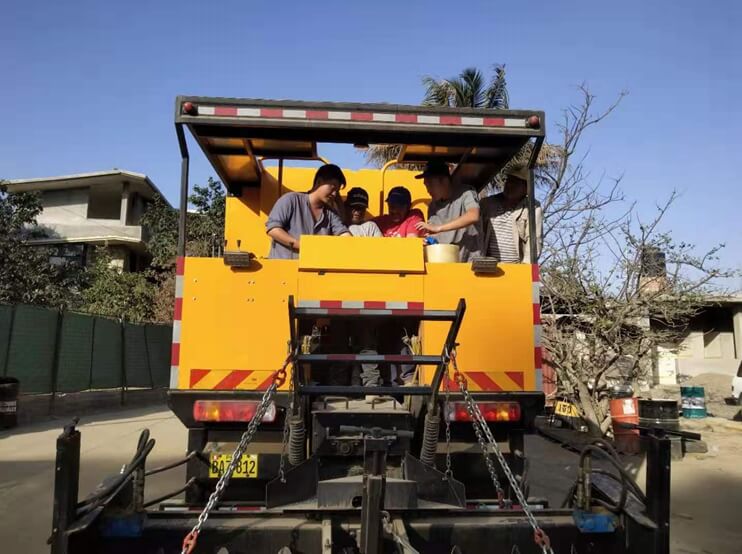

Our slurry seal truck are designed to change the traditional way of pavement maintenance, to ensure that the pavement is in the best condition, and to ensure the safety and service life of driving on the road. At the same time, we can provide different specifications according to customer requirements to meet the use of equipment programs.

2. New upgrade:

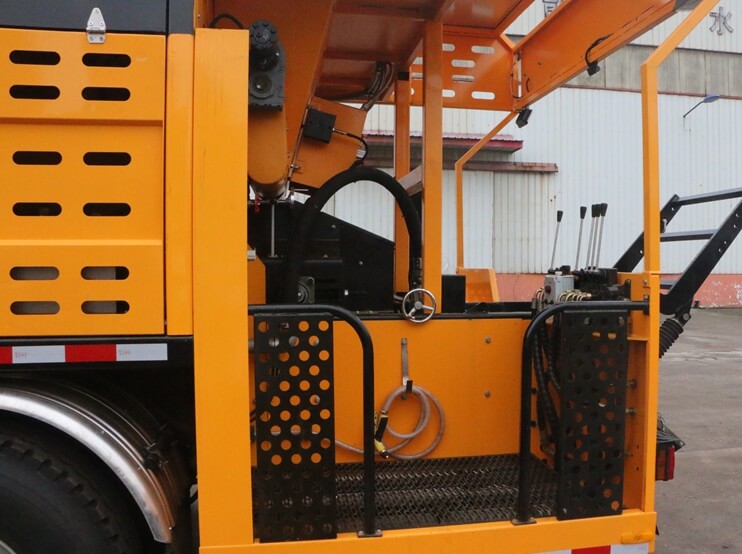

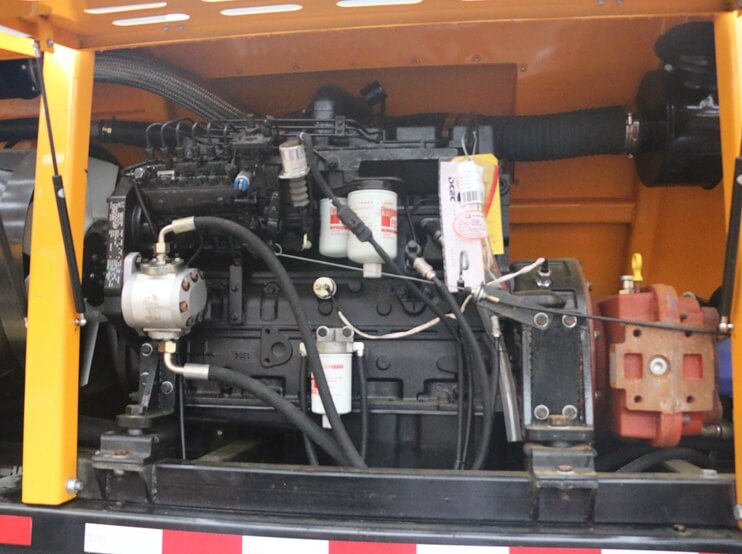

Setting independent high-power auxiliary engine, construction and traveling are independent of each other without interference. Equipped with high-quality high-speed ratio gearbox, compatible with high-speed transmission and low-speed construction. It can easily handle the paving construction of modified bitumen with high viscosity and quasi-demulsification state. Optional variable bitumen pump, with automatic compensation function, more accurate bitumen delivery. Hydraulic and electrical control systems, modular design, ensure the reliability and stability of the machine.

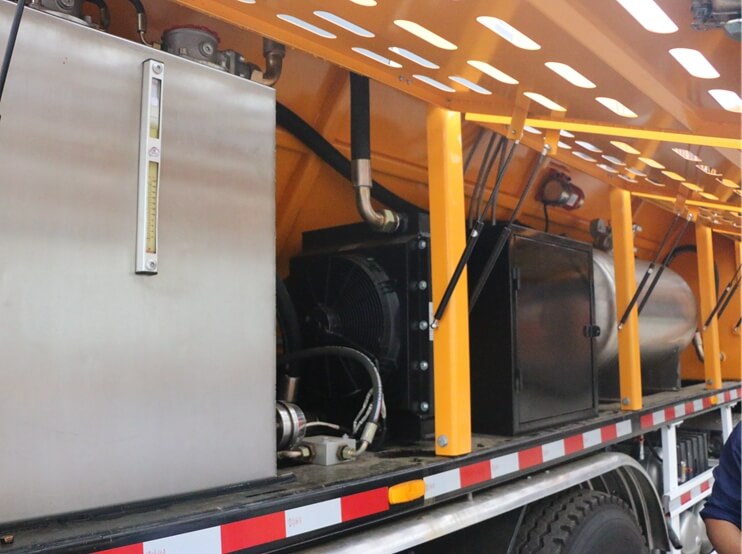

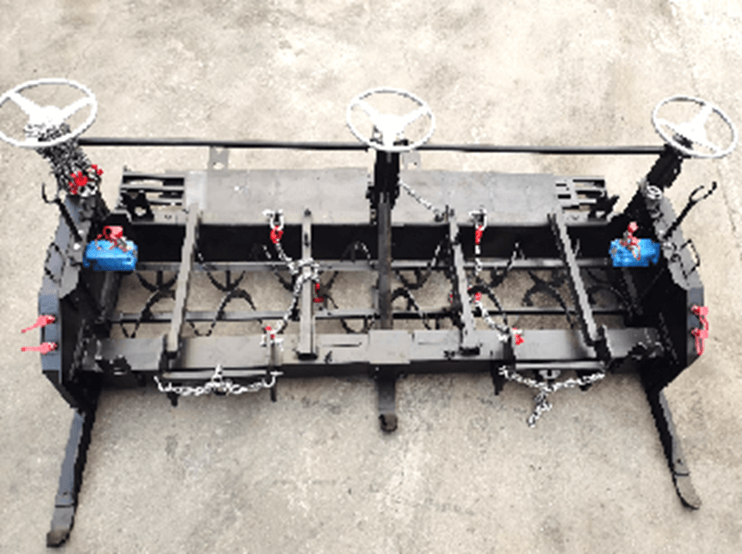

The newly upgraded automatic temperature control device of the hydraulic system ensures a relatively constant working temperature of the hydraulic system. The newly upgraded paving box thickness adjustment is more lightweight, flexible and fast. The spiral blade is made of thick wear-resistant material, which prolongs the service life of the equipment and makes the mixing and paving of materials more uniform.

3. High efficiency and savings:

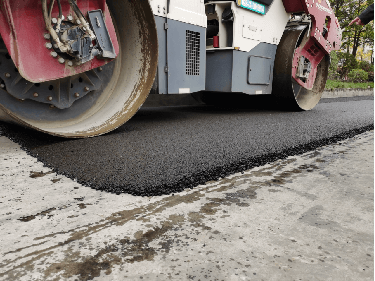

You can cover larger construction areas in less time than with traditional methods. The newly upgraded mixing and conveying device has a mixing capacity of up to 3.5-4.5T/min, which can meet different widths and thicknesses as well as cold mixing and cold paving operations. This efficiency means that project duration can be shortened and traffic interruptions minimized, saving operational and labor costs.

4. Optional customization:

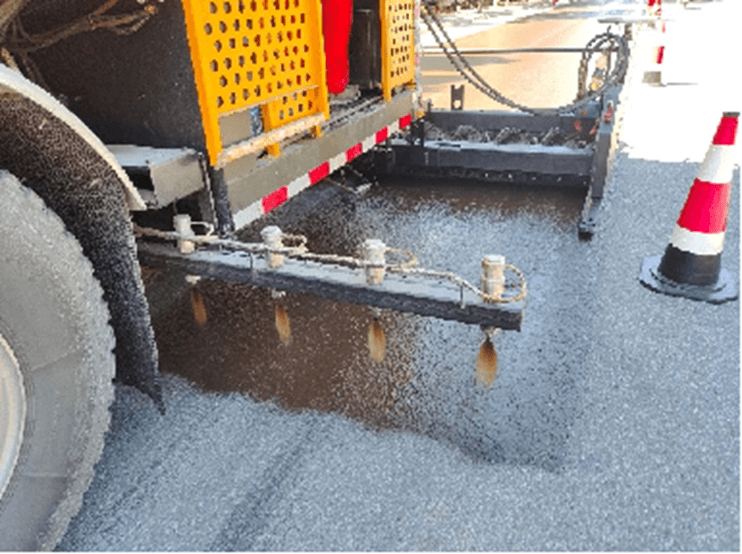

Optional bitumen tank burner automatic heating temperature control device, to meet the needs of harsh construction conditions. Viscous oil heating spraying device is optional to meet the super viscous micro surface construction process requirements.

5. Excellent coating adhesion:

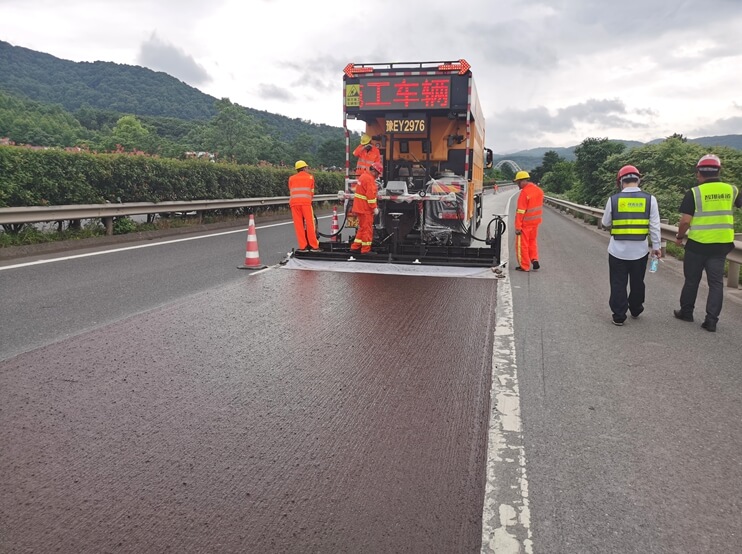

The SELEAD slurry sealer ensures that the excellent adhesion of the slurry sealer to the road surface creates a longer lasting, stronger protective layer. It protects the road from harsh environmental factors, UV radiation and regular wear and tear. Extended pavement life and reduced maintenance frequency translate into significant cost savings over time.

6. Humanized design:

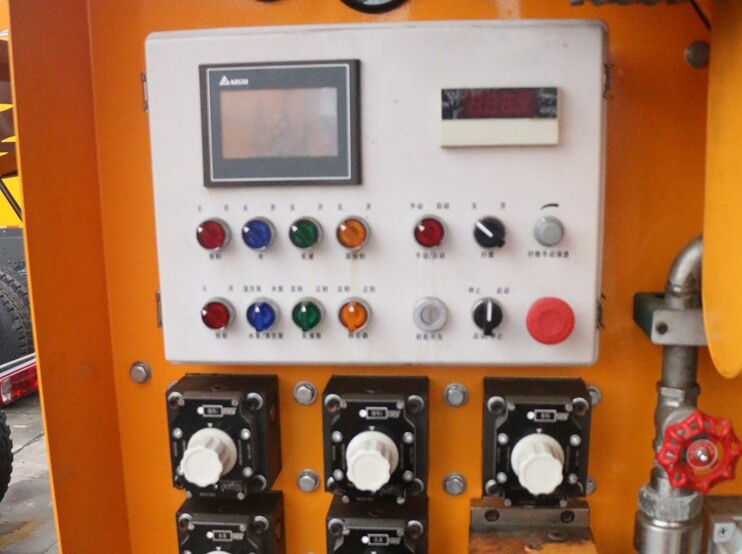

Centralized control of the whole machine. The post-paving construction operating system has one-button start and stop, asphalt and stone ratio control, and the operation is more convenient. The driver’s cab is equipped with a high-definition visual camera with rear high-definition display, construction warning and high-definition video synchronization function, which ensures the safe operation of the construction personnel.

Efficient, durable, precise and environmentally friendly design. Our slurry sealer trucks will make a difference in your road maintenance efforts.
