Slurry Seal -SLXF1640

HomeSlurry Sealer/Micro Surfacing Paver

Slurry Seal -SLXF1640

> Chassis: HOWO/SHACMAN 8*4
> Aggregate Bin Volume: 13-16m³
> Emulsion Tank Volume: 4m³
> Water Tank Volume: 4m³
> Paving Thickness: 3-15mm

Contact Us

E-mail

Slurry Seal SLXF1640:

SLXF1640 slurry seal is a new intelligent thin slurry seal developed by us based on years of experience in engineering construction and equipment development and manufacturing, combined with market customer demand. It can realize automatic proportional viscous oil spraying, fiber shear adding and asphalt heating function. The equipment can be widely used in the construction process of common thin slurry seal, modified thin slurry seal and micro-surface, super viscous fiber micro-surface. With its large material loading capacity, the construction is more effective.

SELEAD All Slurry Seal:


ModelSLXF0612SLXF1035SLXF1240SLXF1640 (Fiber type)SLXF1950 (Thick Pave)
ChassisHOWO 4*2HOWO 6*4HOWO/SHACMAN 8*4HOWO/SHACMAN 8*4HOWO/SHACMAN 8*4
Auxiliary Engine power70kw/2200rpm73kw/2400rpm75kw/2200rpm110 kw/2300rpm153kw/2300rpm
Aggregate bin volume3-6m310m312m313-16m319-22m3
Emulsion tank volume1.2m33.5 m34m34m35m3
Water tank volume1.2m33.5 m34m34m35m3
Additive tank volume400L400L400L400L
Stuffing Box Volume1×0.5 m32×0.5 m32×0.5 m32×0.5 m3 2×1 m3
Mixer outputMaximum 3.5T/minMaximum 3.5T/minMaximum 3.5T/minMaximum 3.5T/minMaximum4.5T/min
Minimum speedAround 1.5 km/hAround 1.5 km/hAround 1.0 km/hAround 1.0 km/hAround 1.0 km/h
Paving thickness3 ~ 15 mm3 ~ 15 mm3 ~ 15 mm3 ~ 15 mm3 ~ 60mm
Paving width1.6~2.5 m adjustable2.5~4.3 m adjustable2.5~4.3 m adjustable2.5~4.3 m adjustable2.5~4.3 m adjustable
Fiber cut length0.1%~0.25%0.1%~0.25%
Recommended fiber content12mm、24mm12mm、24mm
Dimensions7650*2300*3080mm10500*2500*3500mm11670*2520*3570mm12000*2550*3570mm12000*2550*3570mm

Slurry Seal SLXF1640 Feature:

1、Select 153kw Cummins auxiliary high-power engine. Construction and walking are independent of each other without interference. Equipped with large speed ratio transmission. Compatible with high speed transfer and low speed construction. Can easily handle the modified asphalt of high viscosity, quasi-breaking emulsion state of paving construction.
2、The whole machine is fully loaded with 17m³ capacity, high efficiency and less joints.
3、Using American Rotor variable asphalt pump. Can automatically compensate function, asphalt delivery more accurate.
4、Newly upgraded mixing and conveying mixing device. Up to 4T/min mixing capacity, can meet the construction of different width, thickness and emulsion breaking state paving.
5、The hydraulic and electrical control system adopts Danish Danfoss modular design to ensure the reliability and stability of the whole machine.

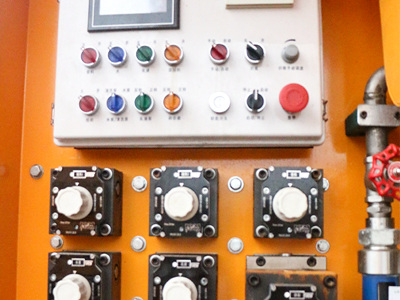

6, the whole machine centralized control, display, warning function is complete, humanized design, a key start and stop. Proportional control of asphalt and stone, more convenient operation.
7、Newly upgraded hydraulic system automatic temperature control device, to ensure that the hydraulic system working temperature is relatively constant.
8、Newly upgraded paving box thickness adjustment is more light, flexible and fast. The spiral lobe is made of 10mm thicker wear-resistant material to extend the service life of the equipment.
9, optional asphalt tank burner automatic heating temperature control device, to meet the needs of harsh conditions construction.
10, optional viscous oil heating spraying, fiber shear adding device. Meet the requirements of the construction process of super viscous fiber micro-surface.

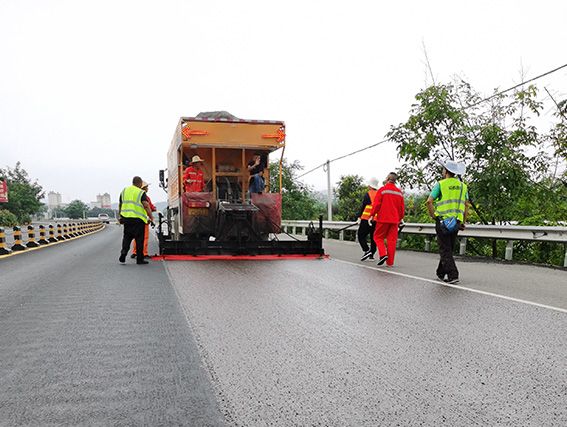

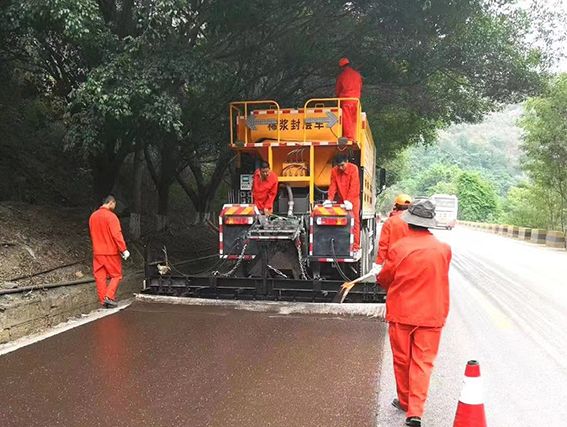

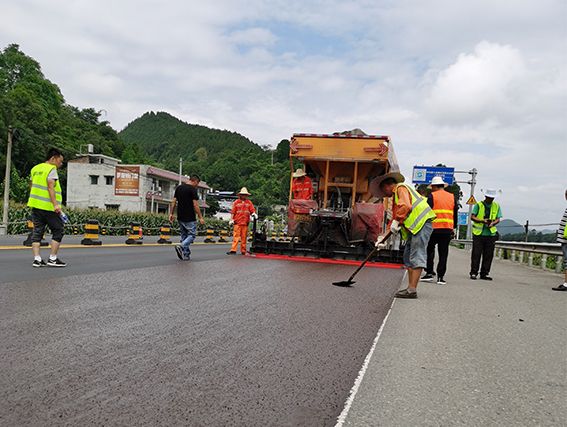

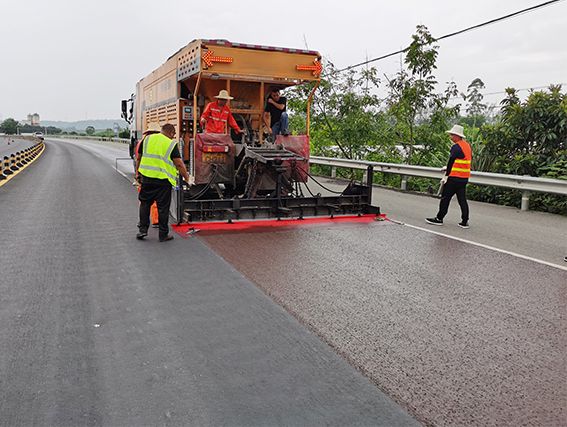

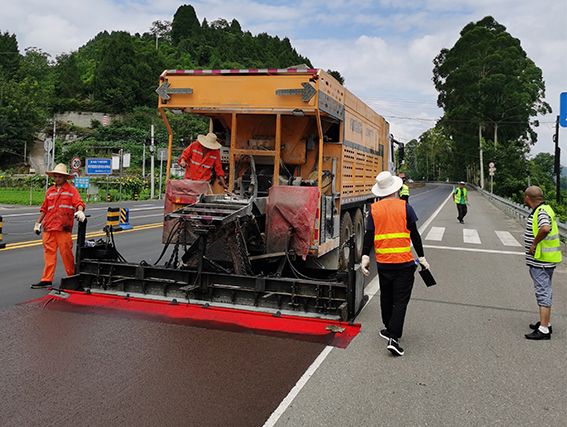

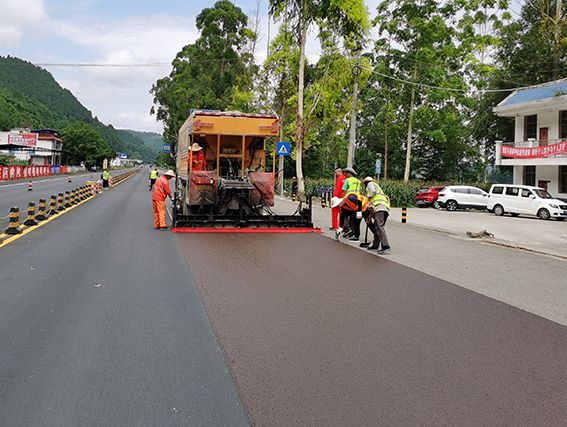

Customer Case:

after-sale-service
